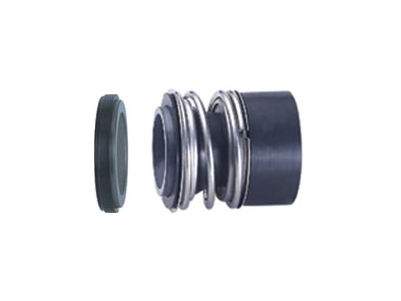

MG13
适用范围
密封腔压力：P≤-0.1～1.6MPa
密封腔温度：t=-20℃～140℃
线 速 度：Vg≤10m/s
| MG13 装配尺寸 (mm) | ||||||||||
|
规格\尺寸 |
d1 |
d3 |
d6 |
d7 |
L33 |
L4 |
L5 |
L6 |
L10 |
|
| MG13-8 | 8 | 21.0 | 17 | 21 | 6.0 | 1.5 | 4.5 | 7.4 | ||
| MG13-10 | 10 | 22.5 | 17 | 21 | 33.4 | 6.6 | 1.5 | 4.5 | 7.5 | |
| MG13-12 | 12 | 25.0 | 19 | 23 | 33.4 | 6.6 | 1.5 | 4.5 | 7.5 | |
| MG13-14 | 14 | 28.5 | 21 | 25 | 33.4 | 6.6 | 1.5 | 4.5 | 7.5 | |
| MG13-16 | 16 | 28.5 | 23 | 27 | 33.4 | 6.6 | 1.5 | 4.5 | 7.5 | |
| MG13-18 | 18 | 32.0 | 27 | 33 | 37.5 | 7.5 | 2.0 | 5.5 | 8.5 | |
| MG13-20 | 20 | 37.0 | 29 | 35 | 37.5 | 7.5 | 2.0 | 5.5 | 8.5 | |
| MG13-22 | 22 | 37.0 | 31 | 37 | 37.5 | 7.5 | 2.0 | 5.5 | 8.5 | |
| MG13-24 | 24 | 42.5 | 33 | 39 | 42.5 | 7.5 | 2.0 | 5.5 | 8.5 | |
| MG13-25 | 25 | 42.5 | 34 | 40 | 42.5 | 7.5 | 2.0 | 5.5 | 8.5 | |
| MG13-28 | 28 | 49.0 | 37 | 43 | 42.5 | 7.5 | 2.0 | 5.5 | 8.5 | |
| MG13-30 | 30 | 49.0 | 39 | 45 | 42.5 | 7.5 | 2.0 | 5.5 | 8.5 | |
| MG13-32 | 32 | 53.5 | 42 | 48 | 47.5 | 7.5 | 2.0 | 5.5 | 8.5 | |
| MG13-33 | 33 | 53.5 | 42 | 48 | 47.5 | 7.5 | 2.0 | 5.5 | 8.5 | |
| MG13-35 | 35 | 57.0 | 44 | 50 | 47.5 | 7.5 | 2.0 | 5.5 | 8.5 | |
| MG13-38 | 38 | 59.0 | 49 | 56 | 46.0 | 9.0 | 2.0 | 6.5 | 10.0 | |
| MG13-40 | 40 | 62.0 | 51 | 58 | 46.0 | 9.0 | 2.0 | 6.5 | 10.0 | |
| MG13-43 | 43 | 65.5 | 54 | 61 | 51.0 | 9.0 | 2.0 | 6.5 | 10.0 | |
| MG13-45 | 45 | 68.0 | 56 | 63 | 51.0 | 9.0 | 2.0 | 6.5 | 10.0 | |
| MG13-48 | 48 | 70.5 | 59 | 99 | 51.0 | 9.0 | 2.0 | 6.5 | 10.0 | |
| MG13-50 | 50 | 74.0 | 62 | 70 | 50.5 | 9.5 | 2.5 | 6.5 | 10.5 | |
| MG13-53 | 53 | 78.5 | 65 | 73 | 59.0 | 11.0 | 2.5 | 6.5 | 12.0 | |
| MG13-55 | 55 | 81.0 | 67 | 75 | 59.0 | 11.0 | 2.5 | 6.5 | 12.0 | |
| MG13-58 | 58 | 85.5 | 70 | 78 | 59.0 | 11.0 | 2.5 | 6.5 | 12.0 | |
| MG13-60 | 60 | 88.5 | 72 | 80 | 59.0 | 11.0 | 2.5 | 6.5 | 12.0 | |
| MG13-65 | 65 | 93.5 | 77 | 85 | 69.0 | 11.0 | 2.5 | 6.5 | 12.0 | |
| MG13-68 | 68 | 96.5 | 81 | 90 | 68.7 | 11.3 | 2.5 | 7.5 | 12.5 | |
| MG13-70 | 70 | 99.5 | 83 | 92 | 68.7 | 11.3 | 2.5 | 7.5 | 12.5 | |
| MG13-85 | 85 | 120 | 100 | 110 | 76.0 | 14.0 | 3.0 | 7.5 | 15.0 | |
