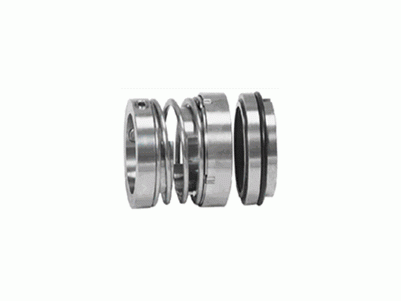

中型密封件112
适用范围
密封腔压力：P≤1.0MPa
密封腔温度：t=-40℃～150℃
线 速 度：Vg≤10m/s
■单端面
■单弹簧
■非平衡型密封
■符合DIN24960标准
| 112 装配尺寸 (mm) | |||||||||||
|
规格\尺寸 |
d1 |
d3 |
d4 |
d6 |
d7 |
d8 |
L1 |
L3 |
L5 |
L6 |
|
|
112-25 |
25 |
39 |
41 |
34 |
40 |
3 |
50 |
39.5 |
2.0 |
5 |
|
|
112-30 |
30 |
44 |
46 |
39 |
45 |
3 |
55 |
43.5 |
2.0 |
5 |
|
|
112-35 |
35 |
49 |
51 |
44 |
50 |
3 |
55 |
43.5 |
2.0 |
5 |
|
|
112-40 |
40 |
56 |
60 |
51 |
58 |
4 |
65 |
52.0 |
2.0 |
6 |
|
|
112-45 |
45 |
61 |
65 |
56 |
63 |
4 |
65 |
52.0 |
2.0 |
6 |
|
|
112-50 |
50 |
66 |
70 |
62 |
70 |
4 |
70 |
56.0 |
2.5 |
6 |
|
|
112-55 |
55 |
71 |
75 |
67 |
75 |
4 |
70 |
56.0 |
2.5 |
6 |
|
|
112-60 |
60 |
80 |
85 |
72 |
80 |
4 |
75 |
61.0 |
2.5 |
6 |
|
|
112-65 |
65 |
85 |
90 |
77 |
85 |
4 |
75 |
61.0 |
2.5 |
6 |
|
|
112-70 |
70 |
90 |
95 |
83 |
92 |
4 |
80 |
63.5 |
2.5 |
7 |
|
|
112-75 |
75 |
99 |
104 |
88 |
97 |
4 |
80 |
63.5 |
2.5 |
7 |
|
|
112-80 |
80 |
104 |
109 |
95 |
105 |
4 |
85 |
68.5 |
3.0 |
7 |
|
